FKCV1

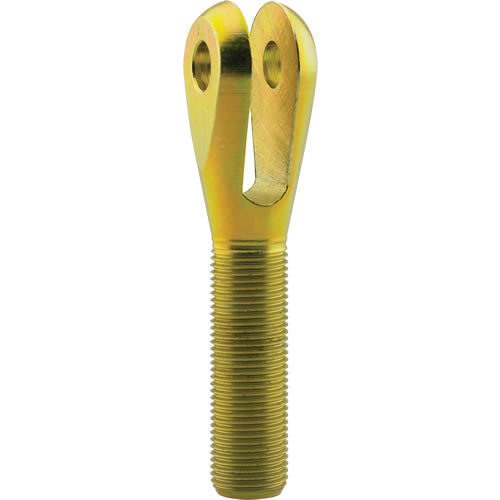

Clevis

Clevis

$44.51
$44.51
Sale Sold out
Tax included.
  • LOW CARBON STEEL
  • ZINC PLATED
  • CHROMATE TREATED
    PART
    NUMBER    		 BORE
    x
    THREAD    		 B
    DIA    		 D
    DIA    		 T
    WTH    		 A
    LGTH    		 C
    LGTH    		 S
    SLOT    		 N
    THD
    REF +.0025
    -.0005    		 +.010
    -.010    		 +.005
    -.005    		 +.015
    -.015    		 +.062
    -.031    		 +.005
    -.005    		 UNF
    3A
    CV1 3/8 x 5/8 .3750 1.125 .825 3.375 2.000 .375 5/8-18
    CV2 1/2 x 5/8 .5000 1.125 .825 3.375

    2.000

    		 .375 5/8-18
    CV3 3/8 x 3/4 .3750 1.125 .825 3.375 2.000 .375 3/4-16
    CV4 1/2 x 3/4 .5000 1.125 .825 3.375 2.000 .375 3/4-16
    CV5 3/8 x 1/2 .3750 .875 .655 3.012 1.700 .250 1/2-20
    CV8 9/16 x 1/2 .5625 1.125 .875 5.563 3.900 .250 1/2-20
